Manpower Filler Board

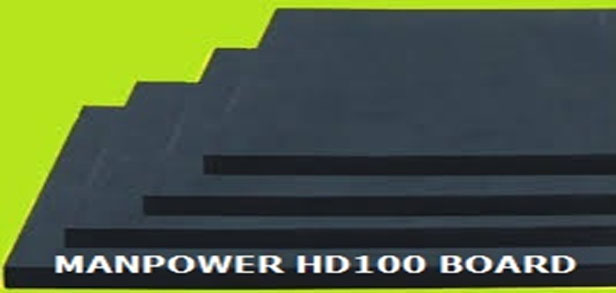

Manpower HD-100 Board is a Pre molded compressible Filler board, high performance closed cell Joint. Filler material available in board Form. It suitable use as Expansion Joint filler in concrete, bricks block work and isolation Joints where readily compressible low load transfer joint filler is required.

Manpower Filler Board

Applications • Structural Expansion joints in concrete brick and block work • Insolation joints to infill panel. • Bridge decks, abutments, pier hinge joints, etc. • As a backup support for sealant. • Expansion joints in concrete highways, Airport Runways & Taxi Tracks etc. • Expansion joints in parking areas, Industrial flooring etc. • Water retaining & water excluding structures.
Features & Advantages • Easy to handle & install • Rot proof &bacteria resistant. • Excellent recovery after compression • Accepts temperature cycle with minimal load transfer. • Bitumen free. • Non-absorbent closed cell & non staining • Resilient & does not distort under normal load from wet concrete • Chemical resistance: Inert to most dilute acids and alkalis, resistant to oil & hydrocarbons.

Technical Data (MANPOWER HD-100)
S.NO. PARAMETERS UNITS OSERVED VALUES TESTED AS PER STANDARD
1 Density Kg/Sq.Mtr 95±5 ASTM-D-3575
2 Water Absorption Kg/Sq.Mtr of cut surface area 0.3 ASTM D-5249
3 Compression Deflection & Recovery % without weathering % 98 ASTM-D5249
4 Compression Deflection & Recovery % with weathering % 92%Min Highway Clause No-1015
5 Extrusion MM 3.0 ASTM-D 5249
6 Alkali Resistance   Not Effect Observes AS-1350-460.2-1982
7 Weathering Test   No Disintegration Highway Clause No-1015
Manpower Expansion Joint

Manpower Expansion Joint Filler Board As per IS-1838/1983

Application • External wall cladding • Traffic Surface & Internal Surface • Building Structure • Reinforcement concrete structure • Bridges, Road, Highways etc. • Physical Properties Manpower Filler expansion joints confirming to the following required standards: • IS -1838 (Part-1) 1983 • ASTM-1751 • B.S. 1142 for standard specification for expansion joint filler.

Size Available
Thickness Length  Packing
12 mm  4 feet X 4 feet   8 Sheet in wooden crates
18 mm  4 feet X 4 feet 6 Sheet in wooden crates
25 mm  4 feet X 4 feet 6 Sheet in wooden crates

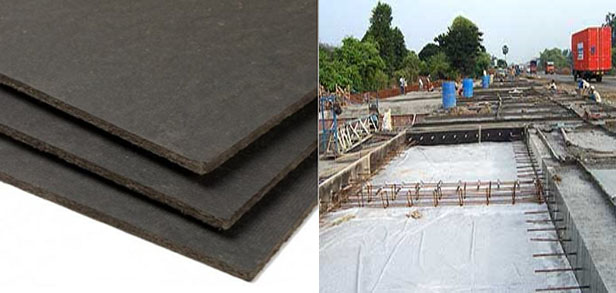

Manpower Bitumen Filler Board

Manpower Bitumen Filler Board

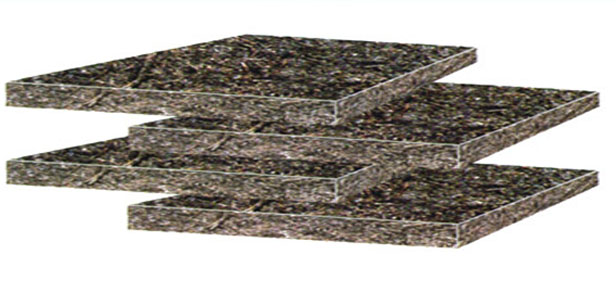

Our products are world-wide known for excellent racking, weather resistance and insulation properties. Manpower expansion joint filler board is made from compressed dry wood fibers impregnated with bitumen prior to being compressed to ensure that to prevent cracking due to change in the weather and allows joint to freely expand in summer and contract in winters without damaging the concrete slabs. It also prevent deposition of foreign material that help free movement of concrete during expansion & contraction and thus prevents cracking.
MPP filler board have excellent resistance to compression and outstanding recovery characteristics, high resilience property gives more than 80% recovery.
While Using Bitumen Filler Board as a water proofing expansion and contraction in construction because of its unique property of bitumen long chain of hydro carbon molecules, the molecular activity becomes slow at low temperature in winter season and increase at high temperature (summer season). This behavior of molecular gives resistance of water proofing and expansion and contraction.

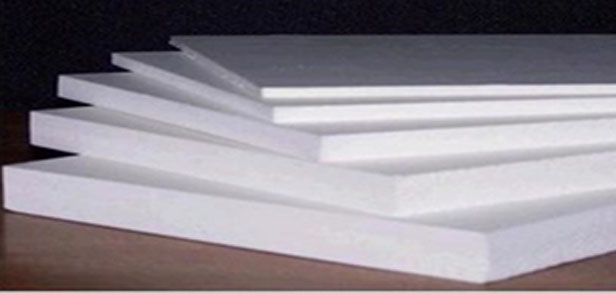

Manpower Armour Board

Manpower Armour Board

MANPOWER Board is alkali resistant, closed cell non cross linked polymer based expansion joint filler material for RCC Columns, Beams, Walls, and Slabs. It is non-staining and non-deteriorating expansion joint filler for buildings.
Application: • Structural expansion joint in building • Buildings brick and block work • Isolation joints between adjacent constructions, E.g. buildings, around manholes. Drains and other insets in concrete
Features & Advantages • Closed Cell • Clean to work with, no crumbs, dust or fibers, easy cutting by knife. • Can withstand joint movement • Does not disintegrate. • Does not react with Acids & Alkalis. • Thickness is built up using at least one layer of 10mm of specifically extruded high performance Manpower Board • Negligible water absorption • Will not discolor sealants or architectural substrates • Excellent recovery hence can accommodate joint Movement.

Technical Data
S.NO. PARAMETERS UNITS OSERVED VALUES TESTED AS PER STANDARD
1 Water Absorption Kg/Sq.Mtr 1.0 Max ASTM -D3575
2 Density K£/Cu.Mtr 30±2 ASTM-D3575
3 Compression Recovery after50% Kg/Sq.Mtr 95Min ASTM-D3575
4 Compression Extrusion MM (After 50%) MM 4.0% Max ASTM-D5249
5 Tensile Strength Kg/Sq.Mtr 1.8 Min Do
6 Elongation % 60Min Do
Comparison of manpower BOARD with Bitumen Board
S.NO. PROPERTIES PARAMOUNT BOARD BITUMEN BOARD
1 Water absorption 1.0 % More than 1 05
2 Recovery Excellent Low
3 Bitumen Content Nil 35-40%
4 Oozing of Bitumen Nil Very high. Stains the structure
5 Cutting & Placing Easy Difficult
6 Life Long life being Polymer Disintegrates with Contact of water

Density will range from 29 to 35 kg/m3. The thicknesses are measured by measuring tape or steel rulers, from sides on length and width and average thickness is kept as specified.
